Catalog Number DFM246810
| TJ Environmental offers a variety of handy size Dwyer flow meters for field calibration of air sampling pumps or use with laboratory equipment. Each flow meter is supplied with two brass lure type fittings for inlet and outlet allowing for easy connection to flexible tubing. |
|
VFB Series flow meter with ±3% full scale accuracy
and 1 - 10 liter/min of air scale. Flow meter bodies are cut and precision
machined from solid, clear acrylic plastic blocks. Scale is easy to
read. The front scale location and white background provides excellent
visibility. The direct reading scales are hot stamped into the plastic and
will not wear off. Mid-range calibration is established with a master flow
meter. Dimensions – 16.5 cm long x 3.4 cm wide x 3 cm deep. Catalog Number DFM246810 |
 |

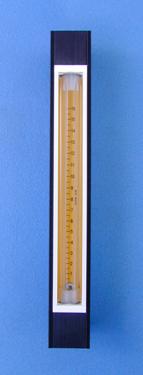

DR Series metric scale, direct read glass flow meters,
150mm flow tube 0.5 LPM to 16 LPM of air, ± 5% full-scale accuracy.
Flow meters have glass flow tube, aluminium
inlet, outlet and side panels and a thick polycarbonate
front shield. Two brass, threaded barb fittings are supplied with
the flow meter for hose attachment. Dimensions – 25cm long x 3.2 cm wide
x 3.2 cm deep
Catalog Number DR200332-M |
